The Build Process - Photo Gallery

Matching quartersawn top halves

Edge jointing top plates

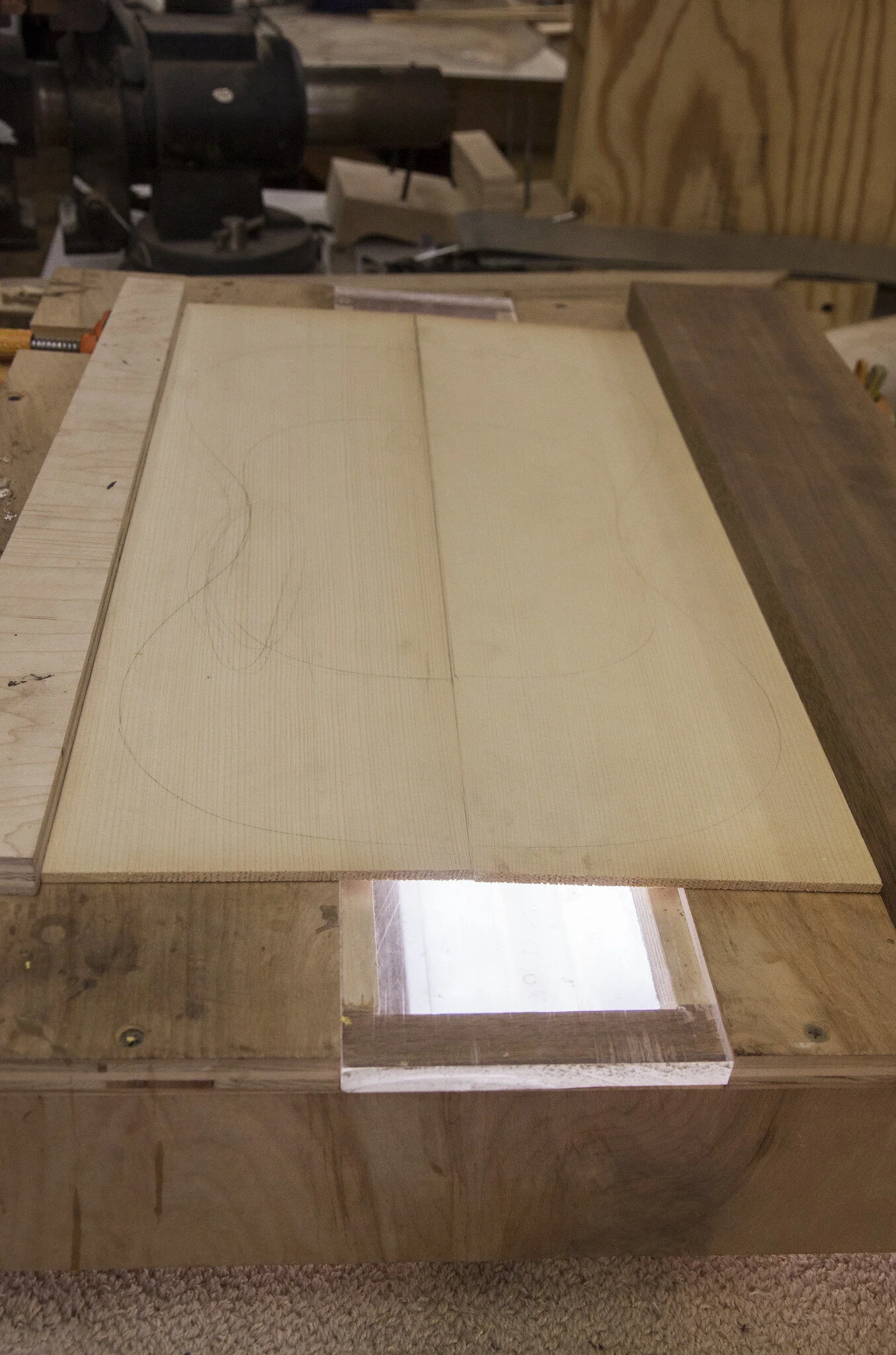

Checking the joint for gaps

Sawing out plate profiles

Fitting rosette tiles into a routed channel

Rosette tiles glued and sanded flat

Routed rosette purfling ring channels

Fitting rosette purfling rings

Leveling rosette purfling rings

Cutting out the soundhole

Resawing brace stock

Splitting brace stock

Fitted X-brace lap joint

Cutting glued braces to length

Paring braces to shape

Roughed-in bracing

Finished Bracing

Inlay cutting

Routing inlay cavity

Bending sides

Marking side profiles

Trimming sides

Gluing kerfed linings

Completing side linings

Trimming tail block to shape

Shaping side braces

Gluing soundbox closed

Laminating binding and purfling

Bending binding to fit side rabbet channels

Trimming purfling miter joints

Fitting binding

Laminated neck stack

Neck laminations undergoing clamping

Neck channels routed

Rough neck shaping with an angle grinder

Neck shape refinig with a Microplane rasp

Final neck shaping with a tapered half-round rasp

Final neck contour

Fingerboard binding

Radius sanding the fingerboard

Cut frets on leveled, polished, and oiled fingerboard

Trimming fret ends to fit the binding with an undercutting nibbler

Pressing frets into place

Trimming fret ends

Beveling fret ends

Masking off the fingerboard and marking the fret tops prior to leveling

Crowning frets after leveling

Rounding fret ends

Polishing frets with MicroMesh abrasives

Stages of bridge fabrication

Bridge layout

Sawing the bridge to shape

Belt sanding the rough bridge contours

Final bridge shaping on the spindle sander

Final wood prep sanding

Body after final spray coats

Level sanding the finish

Buffing the finish

Body after buffing

Gluing the bridge

Clearing jelled excess hide glue

Fitting tapered bridge pins

Fitting the nut blank

Nut layout

Nut slotting

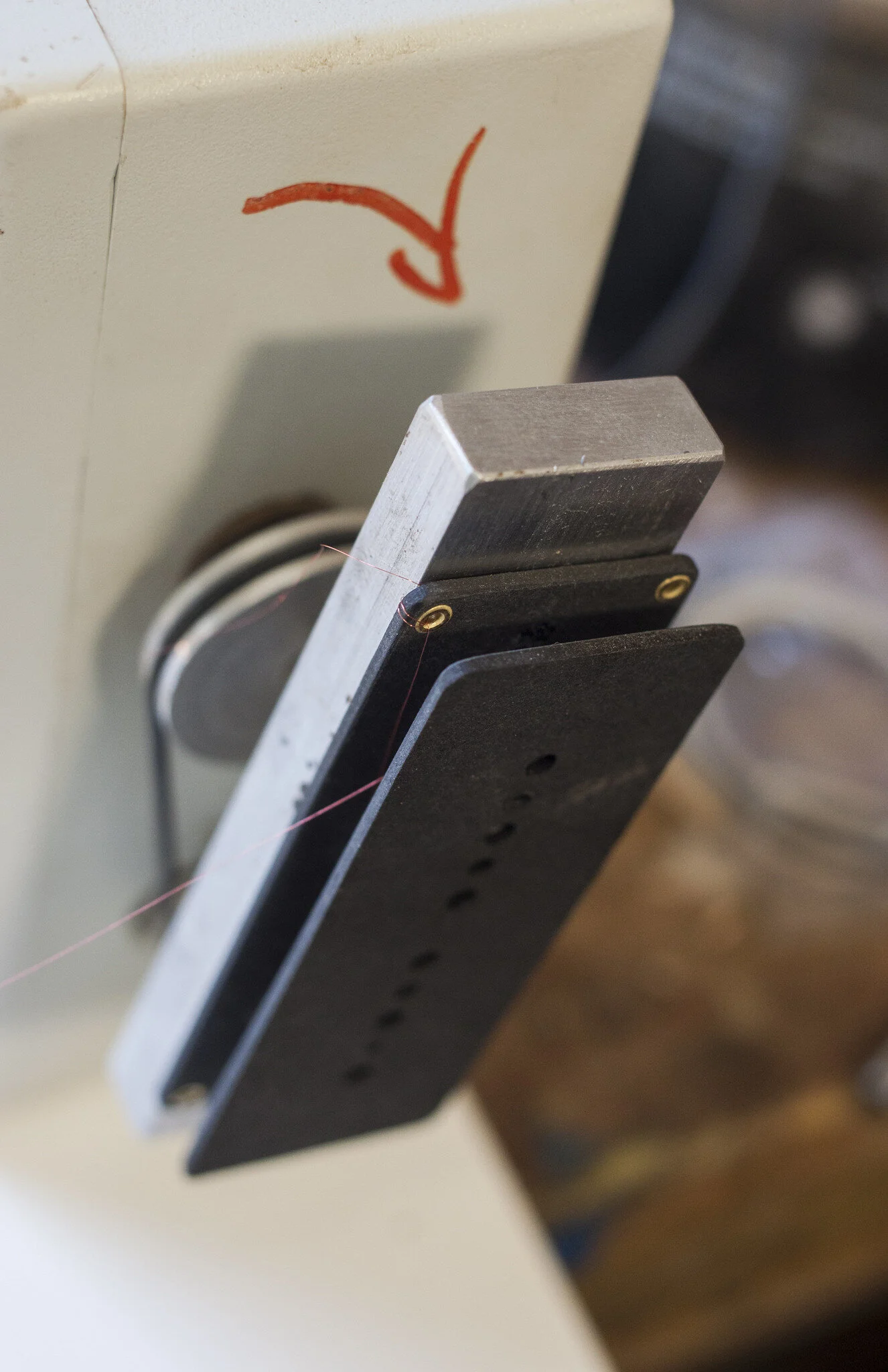

Starting a P90 pickup wind

Hand-winding the pickup
